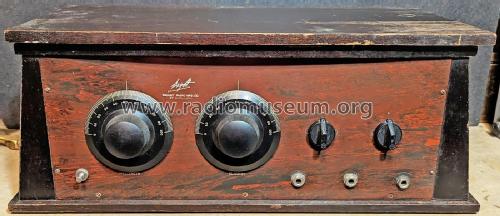

Wright IV-D (4)
Wright Radio Manufacturing Co.; Saint Paul, Minnesota
- Country
- United States of America (USA)
- Manufacturer / Brand
- Wright Radio Manufacturing Co.; Saint Paul, Minnesota
- Year
- 1925
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 66967
-
- alternative name: Wright-DeCoster Inc.
- Brand: Acme
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 3 & 45-90 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Wright IV-D - Wright Radio Manufacturing Co.
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Two controls. One-stage Radio Frequency, detector and two-stages audio.
- Price in first year of sale
- 85.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Literature/Schematics (4)

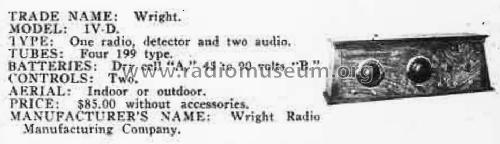

- Radio News (April 1925, Radio Directory on page 1857)
