• Country
• Italy

• Manufacturer / Brand
• Wundercart; Saronno, VA

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194329

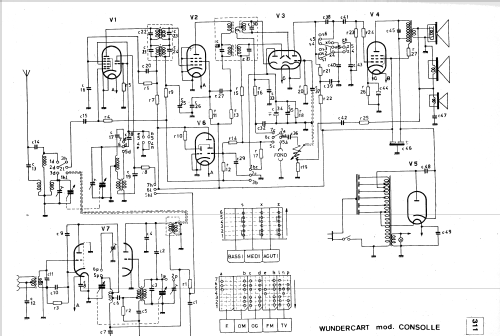

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 EM80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Consolle - Wundercart; Saronno, VA

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 600 x 740 x 340 mm / 23.6 x 29.1 x 13.4 inch

• Notes
• Tasto per la ricezione del canale audio televisivo.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 87,000.00 ITL

• Mentioned in
• Catalogo ANIE (1960-61)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
