• Country
• Italy

• Manufacturer / Brand
• Wundercart; Saronno, VA

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191026

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 EM80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

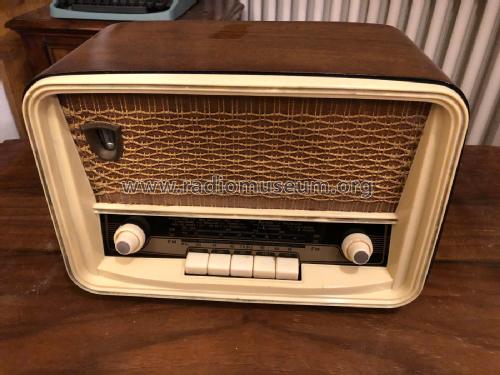

• Model: FM/TV - Wundercart; Saronno, VA

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 300 x 220 x 165 mm / 11.8 x 8.7 x 6.5 inch

• Notes
• Tasto per la ricezione del canale audio televisivo.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 32,000.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• Catalogo ANIE (1960-61)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
