• Country
• United States of America (USA)

• Manufacturer / Brand
• Wurlitzer Co., The Rudolph; North Tonawanda, NY

• Year
• 1936

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 148360

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 30 30 45 45 45 5Z3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Jukebox-Coin operated Phonograph

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: Jukebox 412 - Wurlitzer Co., The Rudolph;

• Dimensions (WHD)
• 33 x 49 x 22.75 inch / 838 x 1245 x 578 mm

• Notes

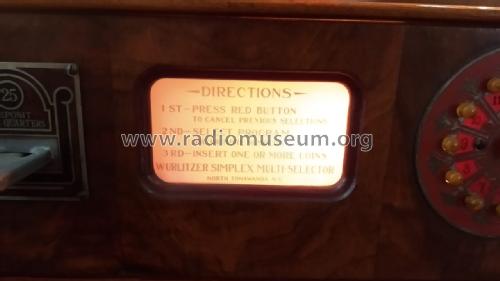

• The model 412 was introduced in 1936 and plays 12 different selections on 78 RPM records, playing only the upper side of the record. The Wurlitzer 412 uses a Model 660 Amplifier, which has six tubes (in order): two 30's, three 45's, and a 5Z3 rectifier. It accepts nickles, dimes, and quarters, offering one play per 5 cents. This was the most common of all the 12-select Wurlitzer jukeboxes.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
