• Country
• United States of America (USA)

• Manufacturer / Brand
• Wurlitzer Co., The Rudolph; North Tonawanda, NY

• Year
• 1937

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 67004

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 30 30 45 45 45 45 5Z3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Jukebox-Coin operated Phonograph

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Various materials

• from Radiomuseum.org

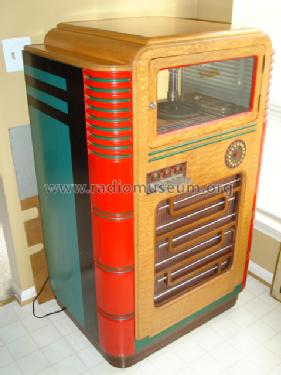

• Model: Jukebox 716AC Ch= 771 - Wurlitzer Co., The Rudolph;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• The general model 716 is a Jukebox from 1937. Wurlitzer began 1933 with "Debutante" to design and produce Jukeboxes. In 1937 the following line was made: 316 Modern, 416 Standard, 50 "console", 51 Countertop, 616 and 716. The models 316, 416, 616, 716 and 616A have 16 selections and use the amplifier 771.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Literature/Schematics (1)
• -- Schematic
