• Country
• United States of America (USA)

• Manufacturer / Brand
• Wurlitzer Co., The Rudolph; North Tonawanda, NY

• Year
• 1934

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 148353

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 53 2A3 2A3 26 5Z3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Jukebox-Coin operated Phonograph

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

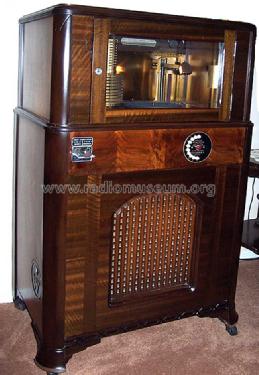

• Model: Jukebox P-10 Simplex Ch= 453 - Wurlitzer Co., The Rudolph;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 30.25 x 48.5 x 20.75 inch / 768 x 1232 x 527 mm

• Notes
• The model Simplex from Wurlitzer is the second Wurlitzer Jukebox and the first sold in quantities. Like Debutante, it also plays 78 speed records and can select 10 different records. The P-10 uses the model 453 Simplex Power Amplifier. Wurlitzer began 1933 with "Debutante" to design and produce Jukeboxes. Those two models were followed by many others. Wurlitzer played the biggest role for Jukeboxes.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
