• Country
• Japan

• Manufacturer / Brand
• Yaesu-Musen Co. Ltd.; Tokyo

• Year
• 1993 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 343756

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 10.8 - 15.6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

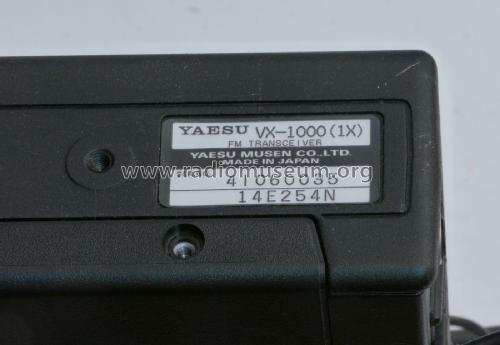

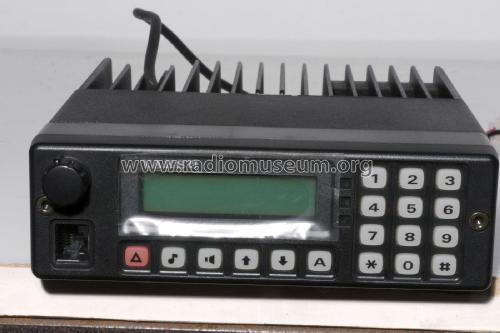

• Model: FM Transceiver VX-1000 - Yaesu-Musen Co. Ltd.; Tokyo

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 160 x 50 x 180 mm / 6.3 x 2 x 7.1 inch

• Notes

• Four different front panel configurations available.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Mentioned in

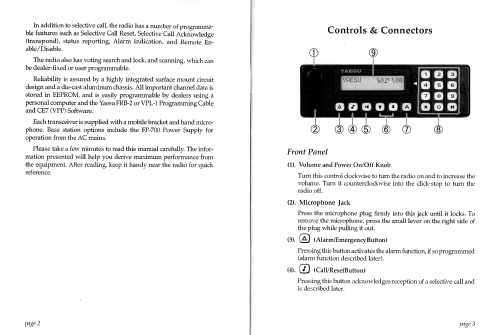

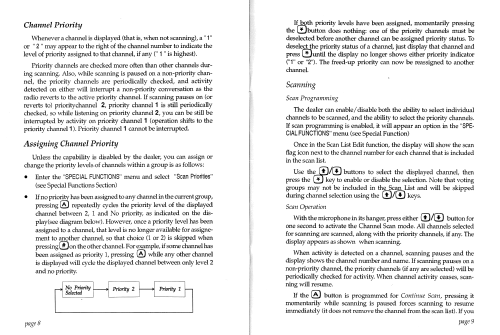

• - - Manufacturers Literature

• Author
• Model page created by David Erali. See "Data change" for further contributors.
