FT-225RD

• Country
• Japan

• Manufacturer / Brand
• Yaesu-Musen Co. Ltd.; Tokyo

• Year
• 1978–1981 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 73829

• Picture

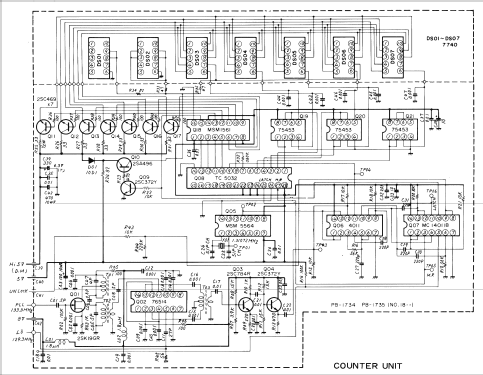

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 90

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 110-235 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: FT-225RD - Yaesu-Musen Co. Ltd.; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 125 x 315 mm / 11 x 4.9 x 12.4 inch

• Notes

• Yaesu VHF-Transceiver FT-225RD. 2-m-HAM-band from 144 to 148 MHz in four ranges (146 to 148 MHz with optional crystals); 11 memories; Modes: SSB, CW, AM, FM; digital frequency readout. P_out: 24 W PEP in SSB, 1 - 25 W in CW and FM, 8 W in AM.

  In Europe also sold under the Sommerkamp label.

  The british Mutek-Company sold a hight performance front-end board for this RIG (Design by Ian White, G3SEK).

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 2,089.00 DM

• Mentioned in
• RICOFUNK-Katalog 1980

• Author
• Model page created by a member from D. See "Data change" for further contributors.

• Other Models

• Here you find 305 models, 289 with images and 139 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Yaesu-Musen Co. Ltd.; Tokyo
