• Country
• Japan

• Manufacturer / Brand
• Yaesu-Musen Co. Ltd.; Tokyo

• Year
• 1978 ??

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 73226

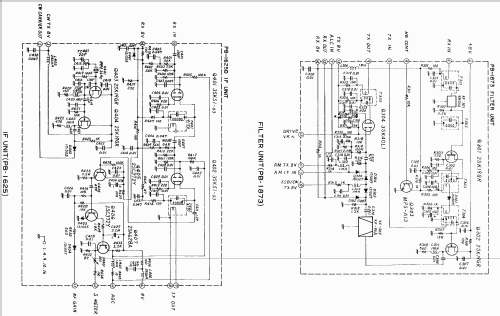

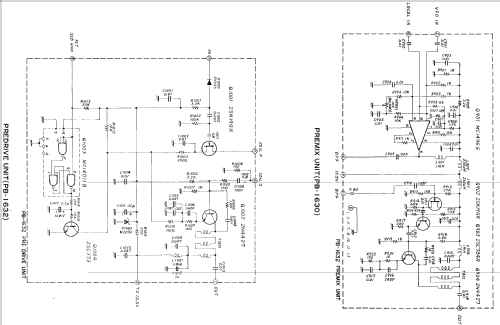

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13.8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: FT-7B - Yaesu-Musen Co. Ltd.; Tokyo

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 230 x 80 x 320 mm / 9.1 x 3.1 x 12.6 inch

• Notes

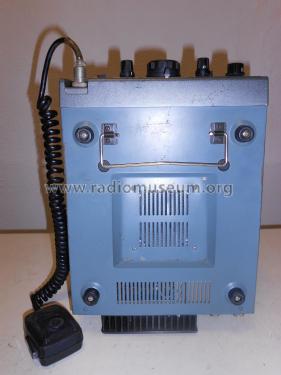

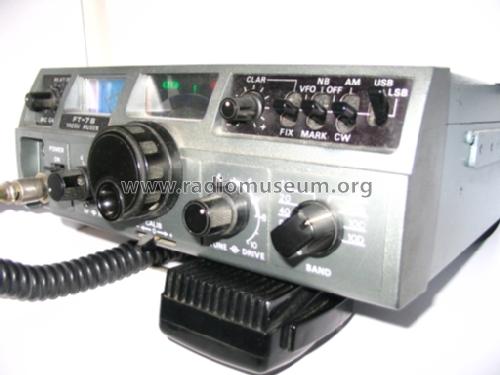

• Yaesu Mobile-HF-Transceiver FT-7B.
  Covers the HAM bands 80 to 10 m in AM, SSB and CW; P_out: 50 W (AM 25 W).

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.

• Other Models

• Here you find 305 models, 289 with images and 139 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Yaesu-Musen Co. Ltd.; Tokyo
