FT-847
Yaesu-Musen Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Yaesu-Musen Co. Ltd.; Tokyo
- Year
- 1998
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 73237

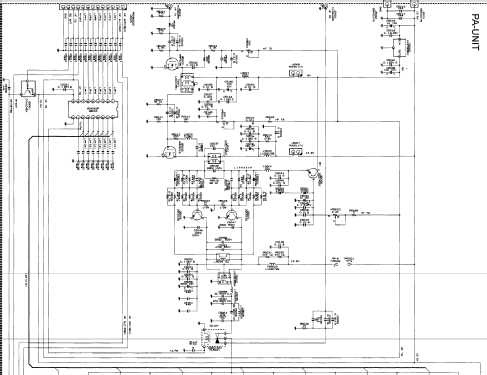

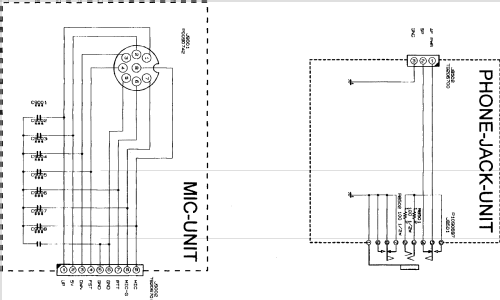

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / 13.8 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: FT-847 - Yaesu-Musen Co. Ltd.; Tokyo
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 260 x 86 x 270 mm / 10.2 x 3.4 x 10.6 inch
- Notes
- Yaesu HF-/VHF-/UHF-Transceiver FT-847.
Frequency range TX: 160-10 m incl. WARC, 50-54 MHz, 144-146 MHz, 430-440 MHz (also 4 meters in the UK), RX: 0.1-30 MHz, 36-76 MHz, 108-174 MHz, 420-512 MHz; Modes: AM, FM, SSB, CW; Pout: 100 W (AM: 25 W).
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
