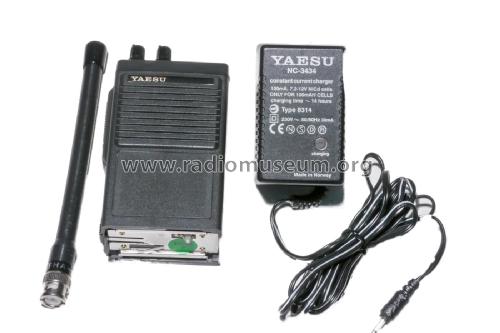

VHF FM Transceiver FTH-2009

Yaesu-Musen Co. Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 268474

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 21400/455 kHz
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 9.6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: VHF FM Transceiver FTH-2009 - Yaesu-Musen Co. Ltd.; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 60 x 190 x 40 mm / 2.4 x 7.5 x 1.6 inch
  • Notes

  • 3 Versions: A: 136-151MHz; B: 150,8-163MHz; C: 161-174MHz.

    Up to 6 simplex or semi-duplex channels. 1 / 4,5 W RF-out.

  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)
