DVB-T-Receiver 37060D
Yakumo GmbH; Braunschweig
- Country
- Germany
- Manufacturer / Brand
- Yakumo GmbH; Braunschweig
- Year
- 2007 ??
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 287453
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 100-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: DVB-T-Receiver 37060D - Yakumo GmbH; Braunschweig
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 370 x 70 x 260 mm / 14.6 x 2.8 x 10.2 inch
- Notes
-
DVB-T-Receiver.

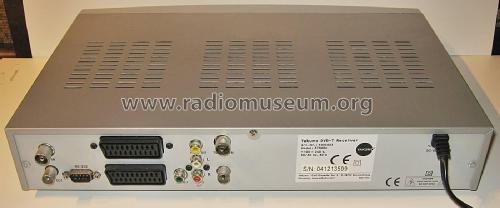

Durchgeschliffener HF-Anschluss; Video-Ausgang (Cinch); Audio-Analogausgänge R+L (Cinch); Digital-Audioausgang (Cinch); Serielle Schnittstelle (RS 232); 2x SCART; eingebauter UHF-Modulator.
Leistungsaufnahme: 30 W.
- Net weight (2.2 lb = 1 kg)
- 2.264 kg / 4 lb 15.8 oz (4.987 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
