FM/AM Stereo Receiver with Dual Tuning Meters CR-800
Category
Broadcast Receiver - or past WW2 Tuner
Radiomuseum.org ID
251490
alternative name: Nippon Gakki
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (3)
Previous Next
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (1)
Frontansicht
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (1)
Gerät ohne Gehäuse
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (1)
Rückseite
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (1)
Endstufe
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (1)
Netzteil
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Bild-Legende
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Frontseite aus Original-Firmen-Prospekt
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Aus Original-Firmen-Prospekt
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Original-Firmen-Prospekt
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Original-Firmen-Prospekt
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Original-Firmen-Prospekt
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Original-Firmen-Prospekt
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Service Manual
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Service Manual
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Service Manual
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Service Manual
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Service Manual
Yamaha Co.; FM/AM Stereo Receiver with Dual Tuning Meters CR-800 (2)
Service Manual
Previous Next

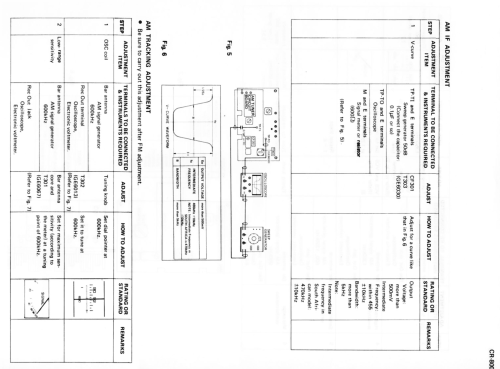

Click on the schematic thumbnail to request the schematic as a free document.
Main principle
Superheterodyne (common)
Wave bands
Broadcast (BC) and FM or UHF.
Power type and voltage
Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker
- This model requires external speaker(s).
Power out
120 W (150 W max.)
from Radiomuseum.org
Model: FM/AM Stereo Receiver with Dual Tuning Meters CR-800 - Yamaha Co.; Hamamatsu
Shape
Tablemodel, with any shape - general.
Dimensions (WHD)
474 x 158 x 300 mm / 18.7 x 6.2 x 11.8 inch
Notes
Yamaha FM/AM Stereo Receiver Model CR-800.
Tuning range:
FM 88 - 108 MHz
MW 525 - 1605 kHz
Power output: (20-20000Hz)
45 watts per channel into 8Ω (stereo)
50 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.1%
Damping factor: 70
Input sensitivity: 3mV (mic), 3mV (MM), 150mV (line)
Signal to noise ratio: 70dB (mic), 75dB (MM), 90dB (line)
Channel separation: 50dB (MM), 50dB (line)
Output: 150mV (line), 0.775V (Pre out)
Tone Cntrols:
Bass +/-15dB at 50 Hz
Treble +/-10dB at 10000 Hz
Loudness +10dB at 100 Hz, +5dB at 10000 Hz
Filters:
Low -3dB at 20 Hz, 70 Hz (12dB/Oct.)
High -3dB at 8000 Hz (6dB/Oct.) HIGH BLEND
Speaker load impedance: 4Ω to 16Ω
Semiconductors:
2x IC's, 3x MOSFET's, 98x Transistors, 60x Diodes, 6x Zener Diodes, 3x LED's
Lautsprecherimpedanz: 4 bis 16 Ohm. Bei gleichzeitigem Betrieb von mehr als einem Lautsprecherpaar muß die Impedanz für alle betriebenen Lautsprecher jeweils mindestens 8 Ohm betragen.
Besonderheiten:
- ZF-Ausgang für Quadrofonie
- Trennbarer Vor- und Endverstärker
- Zwei Plattenspieler-Eingänge
Net weight (2.2 lb = 1 kg)
14 kg / 30 lb 13.4 oz (30.837 lb)
Mentioned in
Original-Firmenprospekt
Literature/Schematics (1)
- - Manufacturers Literature (Service & Owners Manual)
Author
Model page created by Bernward Bitter . See "Data change" for further contributors.
