• Country
• Japan

• Manufacturer / Brand
• Yamaha Co.; Hamamatsu

• Year
• 1990

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 207734

• • alternative name: Nippon Gakki

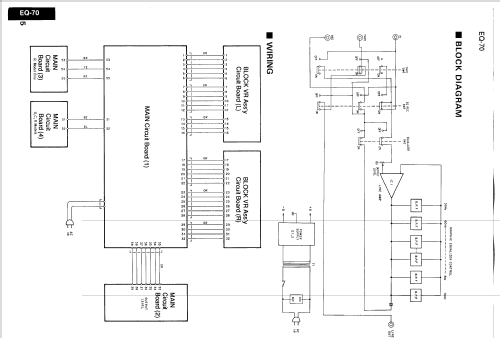

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Natural Sound Graphic Equalizer EQ-70 - Yamaha Co.; Hamamatsu

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 98 x 232.5 mm / 17.1 x 3.9 x 9.2 inch

• Notes
• Graphischer 10-Band Stereo Equalizer. + - 12dB Regelbereich, Tape Aufnahmeausgang.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
