Natural Sound Semiautomatic Belt-Drive Turntable P-07
Yamaha Co.; Hamamatsu
- Country
- Japan
- Manufacturer / Brand
- Yamaha Co.; Hamamatsu
- Year
- 1980 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 289014
-
- alternative name: Nippon Gakki
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Natural Sound Semiautomatic Belt-Drive Turntable P-07 - Yamaha Co.; Hamamatsu
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 435 x 115 x 355 mm / 17.1 x 4.5 x 14 inch
- Notes
-
2-Speed Natural Sound Semi-Automatic Belt-Drive Turntable Model Yamaha P-07.
The Yamaha P-07 features semi-auto operation, 3-point floating suspension and a dynamic balance, knife-edge straight tonearm
Platter 290mm aluminum die-cast, 504g
Wow & Flutter less than 0,04% WRMS
S/N ratio better than 72dB
Tonearm - dynamic balance, knife edge bearings, straight arm tube
Cartridge - Yamaha CG-7700 VM type
Power Consumption 3 Watts
Dust Cover
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Mentioned in

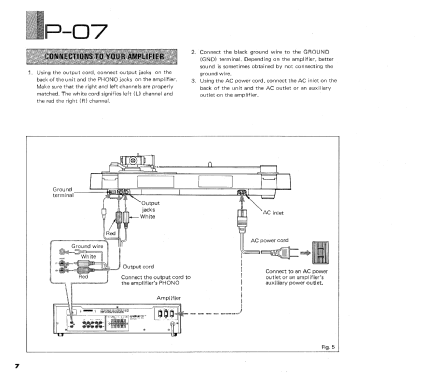

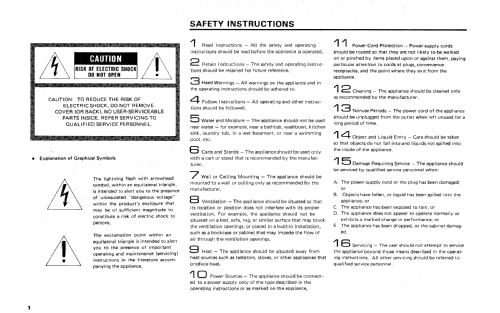

- - - Manufacturers Literature (Instruction Manual)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
