Natural Sound Stereo Receiver RX-496RDS
Yamaha Co.; Hamamatsu
- Country
- Japan
- Manufacturer / Brand
- Yamaha Co.; Hamamatsu
- Year
- 1998–2002
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 214080
-
- alternative name: Nippon Gakki
Original Yamaha Prospect

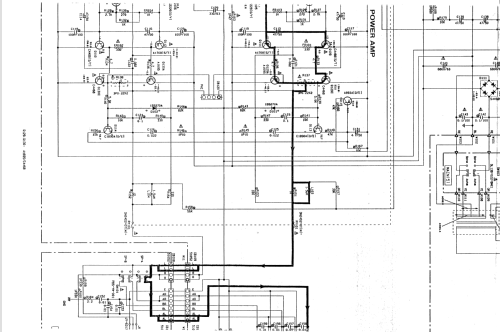

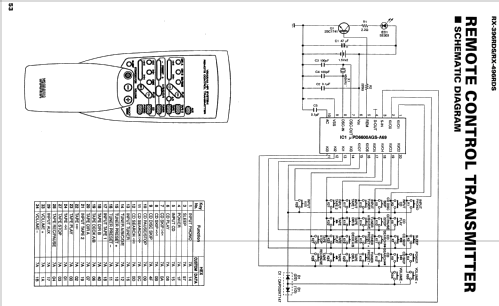

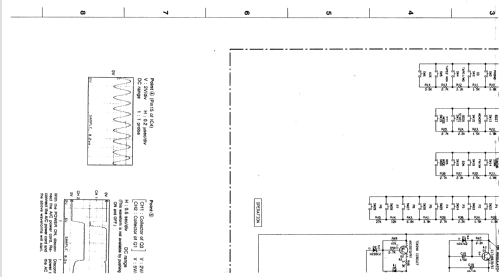

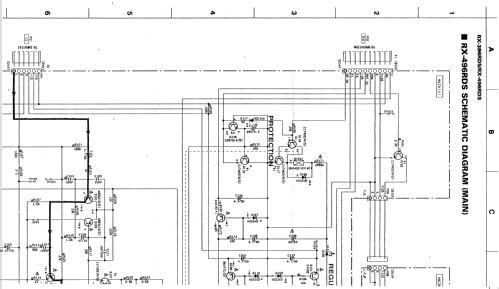

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 210 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Natural Sound Stereo Receiver RX-496RDS - Yamaha Co.; Hamamatsu
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 435 x 146 x 308.5 mm / 17.1 x 5.7 x 12.1 inch
- Notes
- HiFi Receiver mit UKW/MW und RDS. Sinus 2x 75W an 8 Ohm, 2x 105W an 4 Ohm nach DIN, 6 Eingänge, 40 Senderspeicher.
- Net weight (2.2 lb = 1 kg)
- 8.2 kg / 18 lb 1 oz (18.062 lb)
- Price in first year of sale
- 529.00 DM
- Author
- Model page created by a member from D. See "Data change" for further contributors.
