R-3

Yamaha Co.; Hamamatsu

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Yamaha Co.; Hamamatsu

Year
1985/1986

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
198883

- alternative name: Nippon Gakki

Schematics

R-3; Yamaha Co.; (ID = 1010655) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010656) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010657) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010658) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010659) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010660) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010661) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010662) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010663) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010664) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010665) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010666) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010667) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010668) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010669) Radio — Yamaha Co.; R-3 (3)

R-3; Yamaha Co.; (ID = 1010654) Radio — Yamaha Co.; R-3 (2)

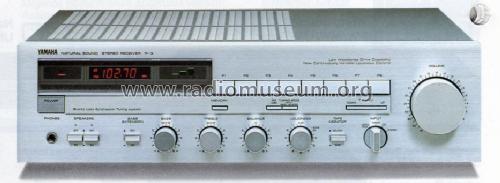

Original Yamaha Prospect

R-3; Yamaha Co.; (ID = 1874827) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1874828) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1874829) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1874830) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1875180) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1875182) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1875183) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1998858) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1998859) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1998860) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1998861) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1998862) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1998863) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1998864) Radio — Yamaha Co.; R-3 (1)

R-3; Yamaha Co.; (ID = 1998869) Radio — Yamaha Co.; R-3 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 220 Volt

Loudspeaker
- This model requires external speaker(s).

Power out
94 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: R-3 - Yamaha Co.; Hamamatsu

Shape
Book-shelf unit.

Dimensions (WHD)
435 x 126 x 288.5 mm / 17.1 x 5 x 11.4 inch

Notes
HiFi Receiver mit MW/UKW, 2 x 33 W an 8 Ohm, 2 x 47 W an 4 Ohm nach DIN, Signalstärkeanzeige durch 3 Segmente.

Functions: Bass on/off - defeat, Treble, Balance, Loudness, Tape Monitor, Tuner, Video, CD, Phono, Memory 1-8, Tuning up/down, headphone socket at front

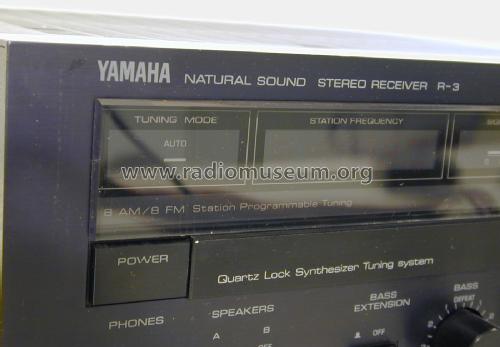

Metal cabinet, known in black or silver finish.

Net weight (2.2 lb = 1 kg)
5.2 kg / 11 lb 7.3 oz (11.454 lb)

Price in first year of sale
566.00 DM

Source of data
-- Original-techn. papers.

Author
Model page created by a member from D. See "Data change" for further contributors.
