• Country
• Japan

• Manufacturer / Brand
• Yamaha Co.; Hamamatsu

• Year
• 1987/1988

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 199902

• • alternative name: Nippon Gakki

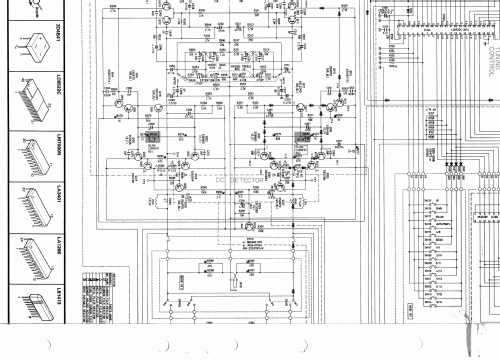

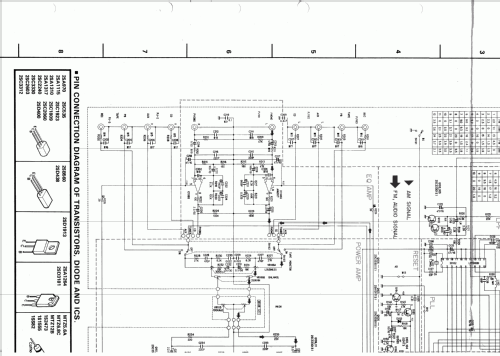

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 94 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Natural Sound Stereo Receiver RX-300 - Yamaha Co.; Hamamatsu

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 126 x 289 mm / 17.1 x 5 x 11.4 inch

• Notes
• Hi-Fi Receiver mit MW und UKW. 2x33W an 8 Ohm, 2x47W an 4 Ohm nach DIN, Direkt PLL Frequenzzähler-Synthesizer-Abstimmung, 16 Stationsspeicher zum Direktabruf, hohe Impulsleistung und Niederimpedanz-Stabilität, Dynamische Bass Extension, stufenlos regelbare Loudness, Anzeige der Signalqualität durch 10 Segmente, Bass und Höhensteller mit linearer Mittelstellung, Eingangswahl durch Drehregler, Tape-Monitor-Wahlschalter, Wahlschalter für 2 Lautsprechergruppen.

• Net weight (2.2 lb = 1 kg)
• 5.2 kg / 11 lb 7.3 oz (11.454 lb)

• Price in first year of sale
• 566.00 DM

• Source of data
• -- Original prospect or advert

• Author
• Model page created by a member from D. See "Data change" for further contributors.
