RX-700

Yamaha Co.; Hamamatsu

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Yamaha Co.; Hamamatsu

Year
1987/1988

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
199915

- alternative name: Nippon Gakki

Schematics

RX-700; Yamaha Co.; (ID = 1023866) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023867) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023868) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023869) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023870) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023871) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023872) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023873) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023874) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023875) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023876) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023878) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023880) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023882) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023884) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023886) Radio — Yamaha Co.; RX-700 (3)

RX-700; Yamaha Co.; (ID = 1023865) Radio — Yamaha Co.; RX-700 (2)
Original Yamaha Prospect

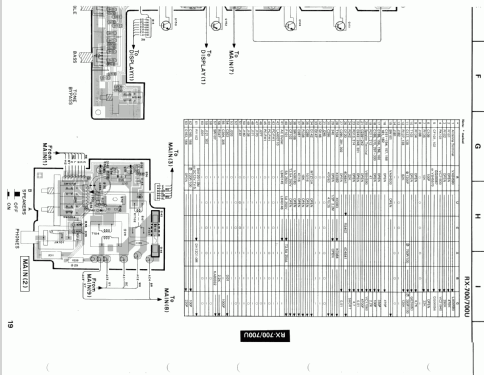

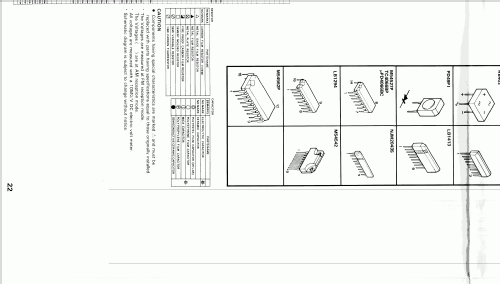

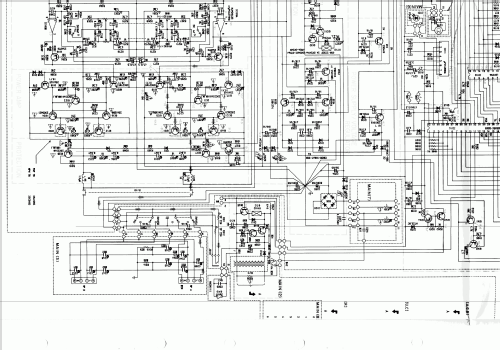

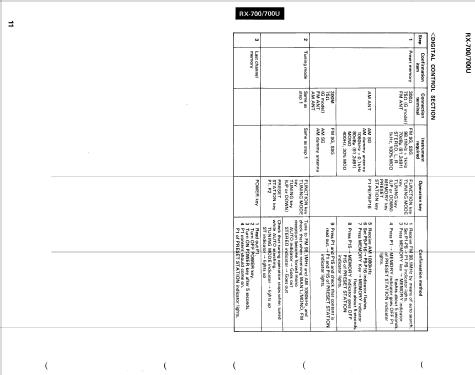

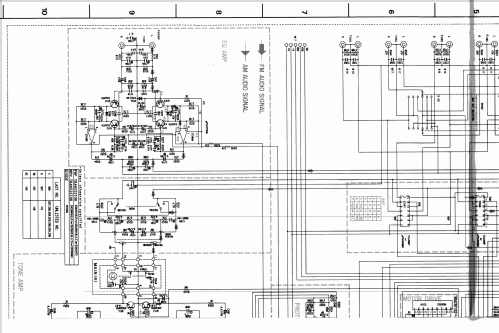

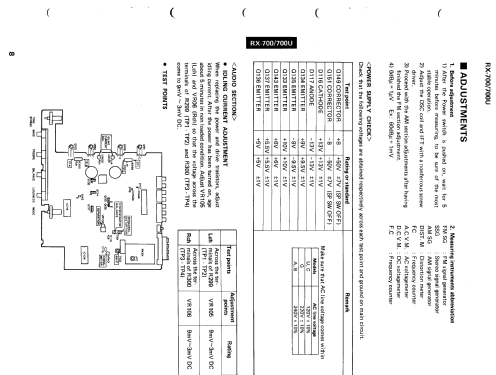

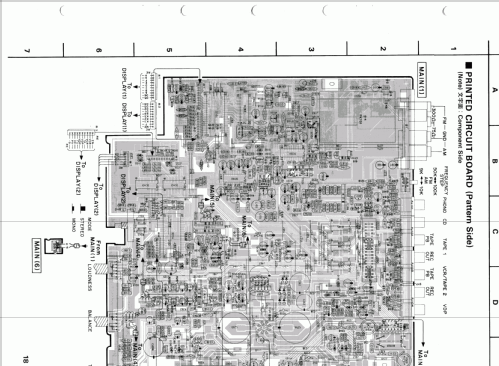

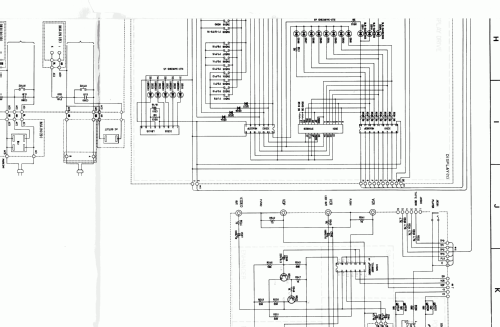

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 220 Volt

Loudspeaker
- This model requires external speaker(s).

Power out
160 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: RX-700 - Yamaha Co.; Hamamatsu

Shape
Book-shelf unit.

Dimensions (WHD)
435 x 126 x 289 mm / 17.1 x 5 x 11.4 inch

Notes
Hi-Fi Receiver mit MW und UKW. Sinus 2x60W an 8 Ohm, 2x80W an 4 Ohm nach DIN, Video Enhancer, 2 Video-Eingänge, hohe Impulsleistung und Niedrigimpedanz-Stabilität, Rec Out-Wahlschalter, stufenlos regelbare Loudness, Direkt PLL Frequenzzähler-Synthesizer-Abstimmung, 16 Stationsspeicher zum Direktabruf, Anzeige der Signalqualität durch 10 Segmente, Tone Bypass-Schalter, Bass und Höhensteller mit linearer Mittelstellung, Wahlschalter für 2 Lautsprechergruppen, integriert im RS-Fernsteuersystem.

Net weight (2.2 lb = 1 kg)
6.3 kg / 13 lb 14 oz (13.877 lb)

Price in first year of sale
1,030.00 DM

Source of data
-- Original prospect or advert

Author
Model page created by a member from D. See "Data change" for further contributors.
