Weixing 卫星 9101
Yantai No.2 烟台无线电二厂 Yantai No.2 Radio Factory; Yantai
- Country
- People's Republic of China
- Manufacturer / Brand
- Yantai No.2 烟台无线电二厂 Yantai No.2 Radio Factory; Yantai
- Year
- 1968 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 178742
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Weixing 卫星 9101 - Yantai No.2 烟台无线电二厂
- Shape
- Tablemodel, low profile (big size).
- Notes
- The radio model Weixing 卫星 9101 (Satellite) has the following key features 主要性能: Frequency range 频率范围: broadcast band 535 - 1605 kc. Set audio output 额定功率: 300 mW. The IF 中频频率 is most probably 465 kc. Loudspeaker impedance is 8 ohm. 2 diodes.
- Mentioned in

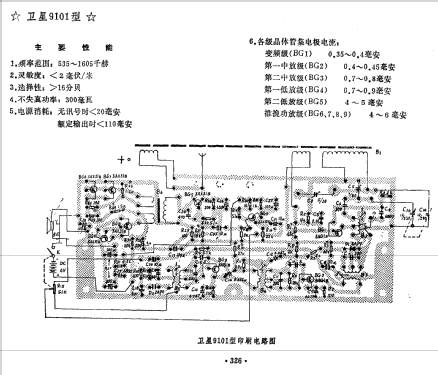

- 03-Transistor Radio Circuit Manual 1981 August (1 of 5) (page 325.)
