• Country
• United States of America (USA)

• Manufacturer / Brand
• York (New York Transistor Corp.); New York, NY

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 311206

• Number of Transistors
• 8

• Semiconductors
• 2SA149 2SA141 2SA141 2SA142 2SB135 2SB135 2SB136 2SB136

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / C: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: York Eight Transistor High Sensitivity TR-86 - York New York Transistor Corp.

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

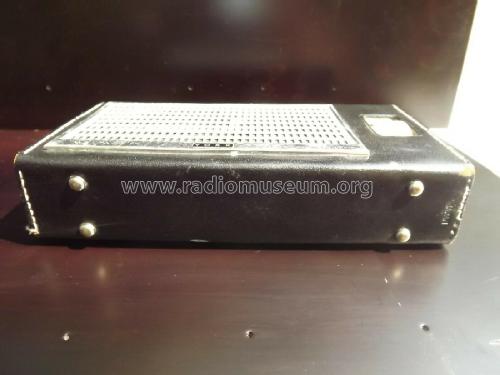

• Same as TR-87 but with leather case.

  Similar to other models listed under Browni.

  Made in Japan

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
