Analog Multimeter YF-20N

Yu Fong Electric Co. Ltd., YFE; Taipei

  • Year
  • 1980 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 316764

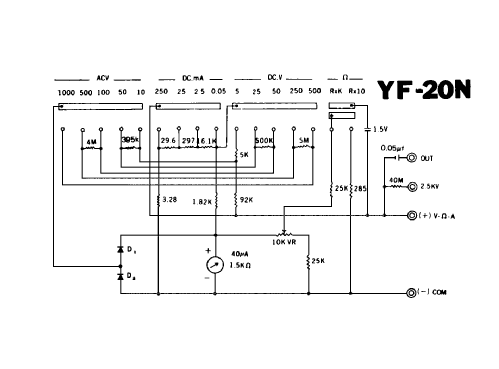

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 1 x 1,5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • from Radiomuseum.org
  • Model: Analog Multimeter YF-20N - Yu Fong Electric Co. Ltd., YFE
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes
  • Yu Fong Electronic Co. Ltd. Analog Multimeter YF-20N

    See also Sansei 200H

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
