Analog Multimeter YF-50T
Yu Fong Electric Co. Ltd., YFE; Taipei
- Country
- Taiwan (Republic of China)
- Manufacturer / Brand
- Yu Fong Electric Co. Ltd., YFE; Taipei
- Year
- 1984 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 316766
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / AA: 2 x 1,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Analog Multimeter YF-50T - Yu Fong Electric Co. Ltd., YFE
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 146 x 97 x 30 mm / 5.7 x 3.8 x 1.2 inch
- Notes
-
Yu Fong Electronic Co. Ltd. Analog Multimeter YF-50T
Characteristics:
- VCC: 0-0,1 - 0,5 - 10 - 50 - 250 - 1000 volts, 20 kiloohms/volts.
- VCA: 0-10 - 50 - 250 - 1000 volts, 8 kiloohms/volts.
- DCC: 0-0,05 - 0,5 - 2,5 - 25 - 250mA - 10A,
- Resistance: 0,2-2kΩ, 20 - 200kΩ, 2kΩ - 2MΩ.
- Sound: -10dB - +22dB.
- hFE: 0-1000.
- Mentioned in
- Revista REDE nº366 mayo 1985
- Literature/Schematics (1)

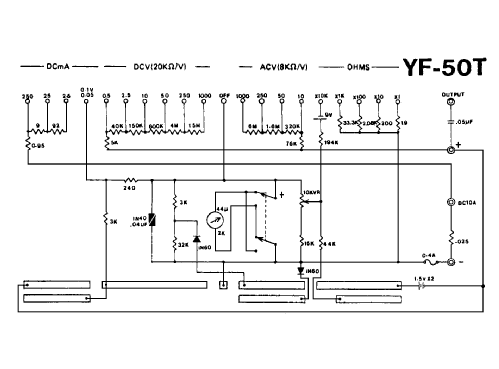

- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
