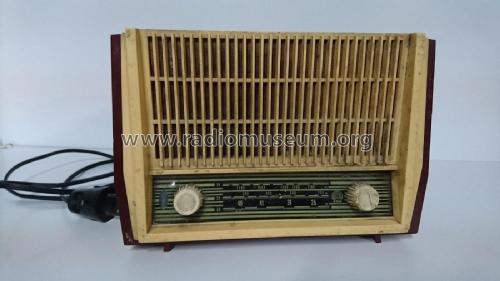

Figaro 1-1/3A
Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
- Country
- Poland
- Manufacturer / Brand
- Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 220256
-
- Brand: Unitra
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 220/240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Figaro 1-1/3A - Unitra ZRK, Zaklady Radiowe im
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 260 x 180 x 130 mm / 10.2 x 7.1 x 5.1 inch
- Notes
- Autotransformer and selenium rectifier. Sockets for external loudspeaker and aerial.
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
