• Country
• Poland

• Manufacturer / Brand
• Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107144

• • Brand: Unitra

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

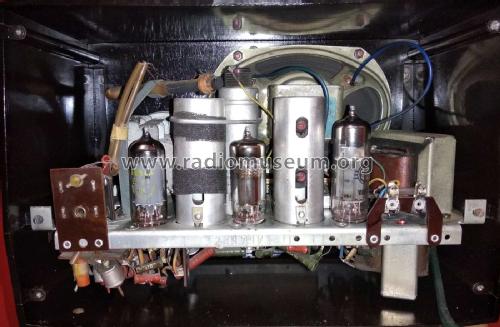

• ECC85 ECH81 EBF89 ECL82

• Number of Transistors

• Semiconductors
• SPS-5A-250-85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

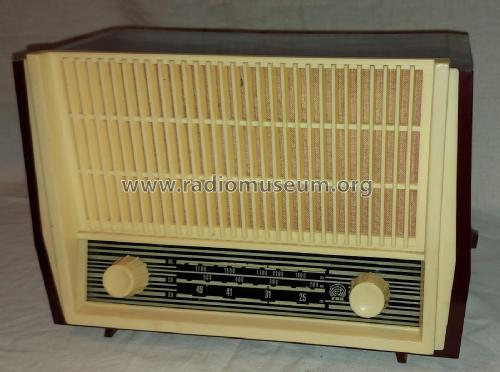

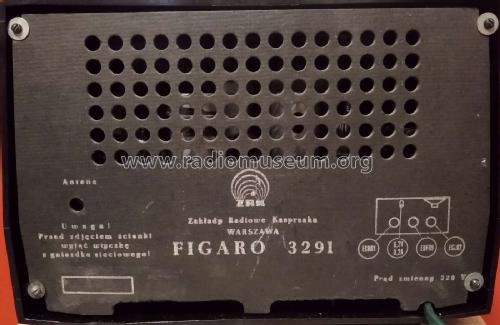

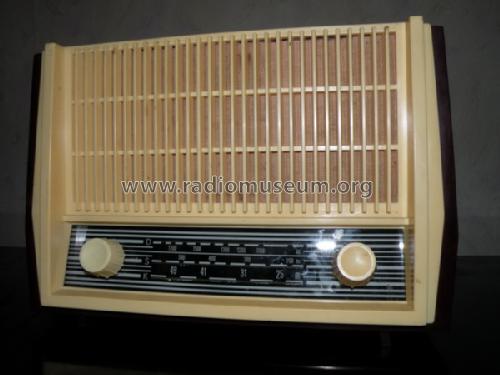

• Model: Figaro 3291 - Unitra ZRK, Zaklady Radiowe im

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 180 x 130 mm / 10.2 x 7.1 x 5.1 inch

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 810.00 zl

• Mentioned in
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
