• Country
• Poland

• Manufacturer / Brand
• Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107145

• • Brand: Unitra

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF89 ECL82 EM80

• Number of Transistors

• Semiconductors
• SPS-6B-250-85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120; 200; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

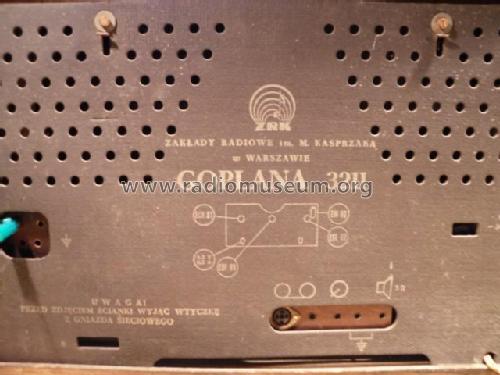

• Model: Goplana 3211 - Unitra ZRK, Zaklady Radiowe im

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 305 x 205 mm / 19.7 x 12 x 8.1 inch

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 1,600.00 zl

• Mentioned in
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
