• Country
• Poland

• Manufacturer / Brand
• Unitra ELTRA; Zaklady Radiowe; Bydgoszcz

• Year
• 1978 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157949

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 8 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

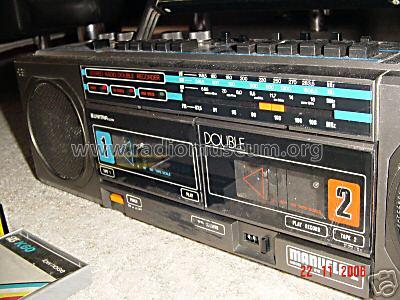

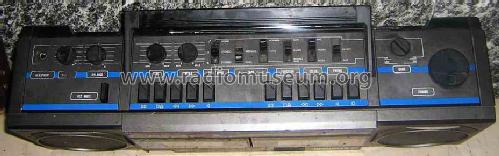

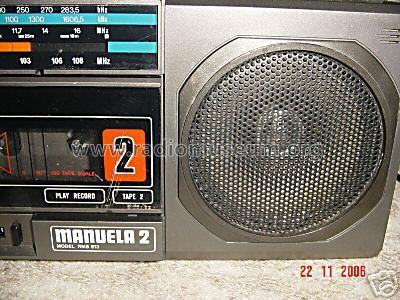

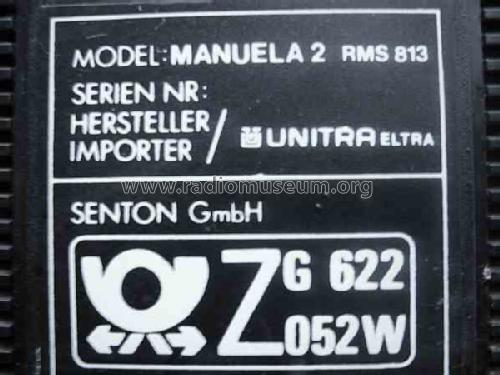

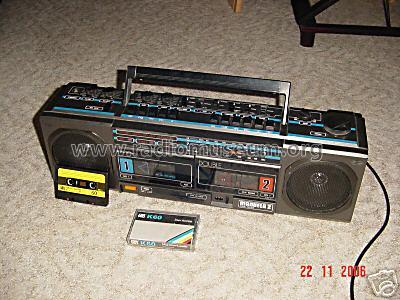

• Model: Manuela 2 RMS 813 - Unitra ELTRA; Zaklady Radiowe;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 545 x 175 x 145 mm / 21.5 x 6.9 x 5.7 inch

• Notes
• (Unitra Polen) Manuela 2 RMS 813, Double Tape, High Speed, Tape Counter, Rec-Mute, Beat/Mode, Mic Norm/High, Phono Aux and In, Headphone, Bass and Treble.Teleskop-Antenna.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
