- Country
- Poland
- Manufacturer / Brand
- Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
- Year
- 1985 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 107165
-
- Brand: Unitra

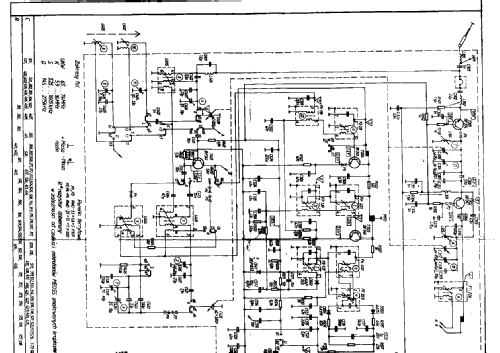

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- BF314 BF241 BF241 BF241 BF240 BC413 BC237 BC238 BC238 BC238 BC238 BC238 BC238 BC308 UL1482
- Main principle
- Superheterodyne (common); ZF/IF 465/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.2 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RM-222 - Unitra ZRK, Zaklady Radiowe im
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 345 x 210 x 85 mm / 13.6 x 8.3 x 3.3 inch
- Notes
-
Der Radiorecorder RM-222 empfängt FM nach OIRT (65 - 74 MHz), hat ein eingebautes Mikrofon und eine Din- Buchse.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
