Roksana R 601

• Country
• Poland

• Manufacturer / Brand
• Unitra-Rzeszów, Rzeszow

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 131680

• Picture

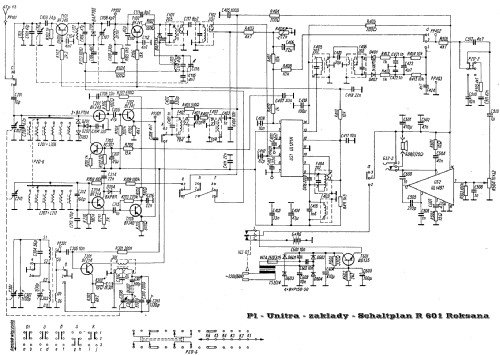

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF240 BF241 BF245 BF241 BC307 BF214 BF240 BF214 BD135 UL1211 UL1497

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage

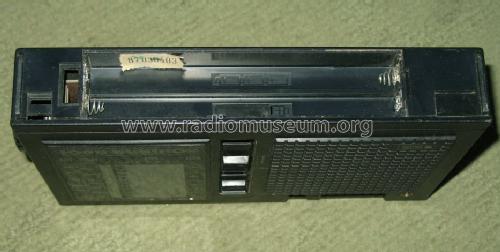

• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

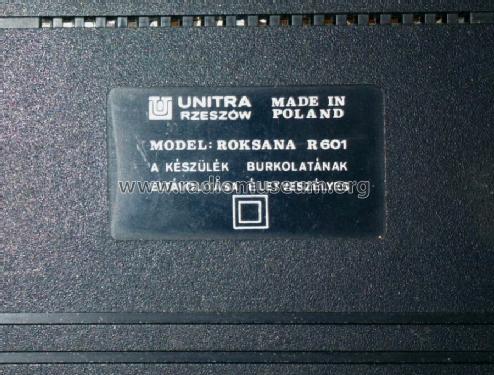

• Model: Roksana R 601 - Unitra-Rzeszów, Rzeszow

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 235 x 147 x 45 mm / 9.3 x 5.8 x 1.8 inch

• Notes
• Roksana, Monokofferradio mit eingebautem Netzteil. UKW: OIRT-Band 66...73,5 MHz, 6 x Kurzwelle: 49m, 41m, 31m, 25m, 16m, 13m - Band.

• Net weight (2.2 lb = 1 kg)
• 0.940 kg / 2 lb 1.1 oz (2.07 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
