• Country
• Poland

• Manufacturer / Brand
• Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka

• Year
• 1972 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 87784

• • Brand: Unitra

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Unitra Fonica WG-414 - Unitra ZRK, Zaklady Radiowe im

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 370 x 125 x 250 mm / 14.6 x 4.9 x 9.8 inch

• Notes

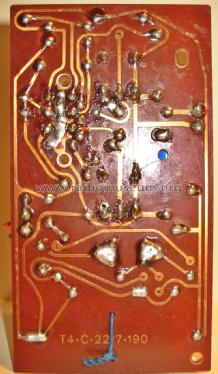

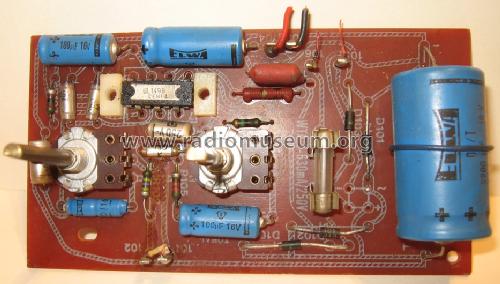

• Der Plattenspieler WG414 ist ein Monogerät mit zwei Geschwindigkeiten, (33 und 45 U/min). Der NF- Verstärker ist mit einem Schaltkreis (UL1498) aufgebaut.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Price in first year of sale
• 230.00 Mark

• Source of data
• - - Data from my own collection

• Mentioned in
• Sortimentskatalog Elektroakustik (DDR, 1976)

• Literature/Schematics (1)
• Importgeräte- CD

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
