• Country
• Poland

• Manufacturer / Brand
• Unitra FONICA, Łódźkie Zakłady Radiowe, Wytwórcze Aparatów Telefonicznych (T-4, Zwat); Łódź

• Year
• 1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 225759

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

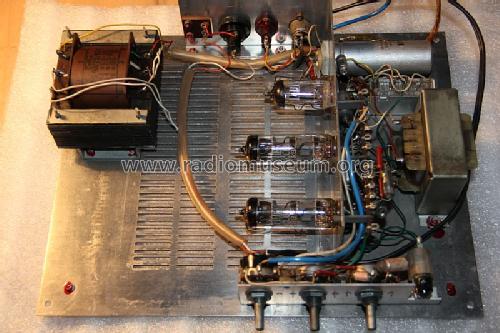

• Valves / Tubes
• ECC82 ECL86 ECL86

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

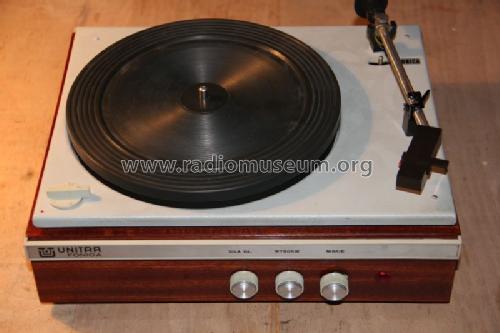

• Model: Unitra Fonica WG-460s - Unitra FONICA, Łódźkie Zakłady

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 320 x 145 x 275 mm / 12.6 x 5.7 x 10.8 inch

• Notes

• Plattenspieler mit 16 2/3, 33 1/3, 45, 78 Umderhungen/Min.

  Tonabnehmer: UK4M, Uf50, equiv. T25/2 (Telefunken)

  Ausgangsleisung des Verstärkers (mono): 4VA bei 15Ohm Lastimpedanz

  Halbleiter:
   - Gleichrichter SPS-6B 250-C-100
   - Germaniumdiode DG-20



• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Chris Lepiarczyk. See "Data change" for further contributors.
