103 lowboy
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 116292
-
- alternative name: Chicago Radio Lab

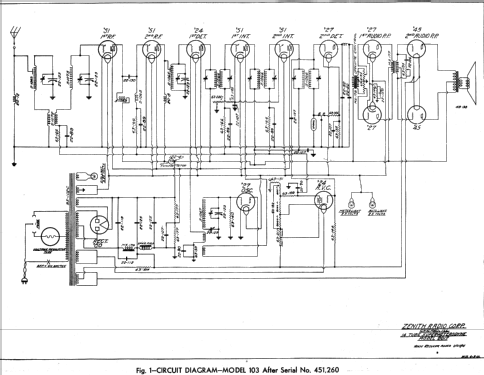

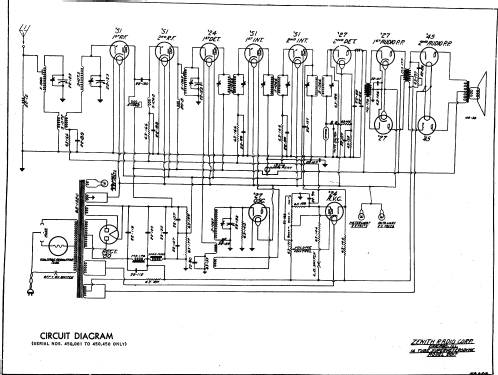

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 10 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 103 [lowboy] - Zenith Radio Corp.; Chicago,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 700 x 1130 x 430 mm / 27.6 x 44.5 x 16.9 inch
- Notes
-
automatic tuning; Price in Switzerland SFr.1800.-. There is also the Highboy version.
