10S155 10-S-155 Ch=1004

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1936

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
67271

- alternative name: Chicago Radio Lab

Schematics

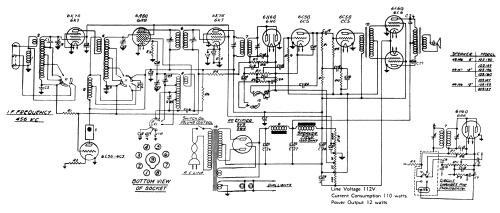

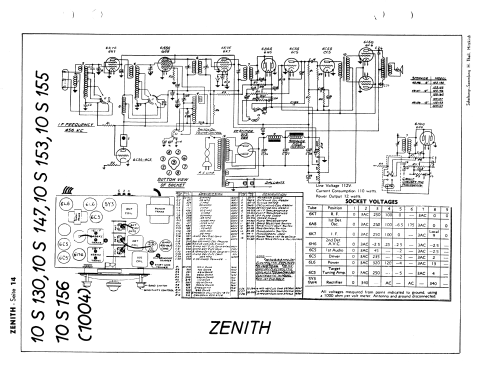

10S155 10-S-155 Ch=1004; Zenith Radio Corp.; (ID = 62304) Radio — Zenith Radio Corp.; 10S155 10-S-155 Ch=1004 (3)
