10S156 10-S-156 Ch=1004

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1936

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
67272

- alternative name: Chicago Radio Lab

Schematics

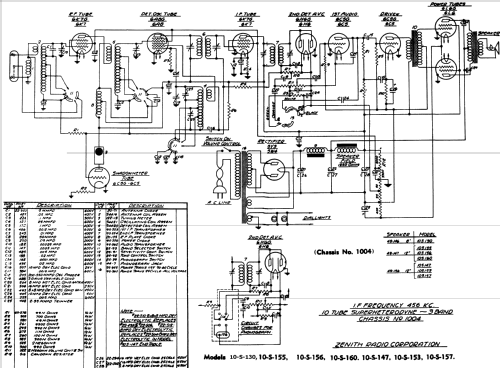

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 62307) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 316241) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 316242) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 316243) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 316244) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 316245) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 316246) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 316247) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 2728224) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 2728225) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 2728226) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 2728227) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 3080191) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 3080192) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (3)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 1141604) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (2)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 92318) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (2)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 92319) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (2)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 92320) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (2)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 706064) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (2)

10S156 10-S-156 Ch=1004; Zenith Radio Corp.; (ID = 92317) Radio — Zenith Radio Corp.; 10S156 10-S-156 Ch=1004 (2)

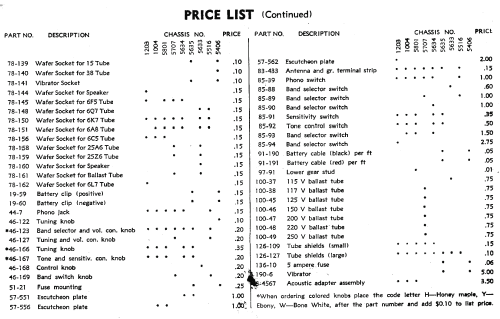

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
10

Valves / Tubes
6K7 6A8 6K7 6H6 6C5 6C5 6C5 6L6 6L6 5W4

Main principle
Superhet with RF-stage; ZF/IF 456 kHz

Wave bands
Broadcast, Short Wave(s) and Police.

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

Material
Wooden case

from Radiomuseum.org
Model: 10S156 10-S-156 Ch=1004 - Zenith Radio Corp.; Chicago,

Shape
Console with any shape - in general

Dimensions (WHD)
26 x 42.5 x 13.8 inch / 660 x 1080 x 351 mm

External source of data
Ernst Erb

Source of data
The Radio Collector's Directory and Price Guide 1921 - 1965

Circuit diagram reference
Rider's Perpetual, Volume 8 = 1937 and before

Mentioned in
Collector's Guide to Antique Radios 4. Edition

Literature/Schematics (1)
Zenith Radio The Glory Years 1936-1945
