10S157 Zephyr 10-S-157 Ch=1004

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1936

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
67273

- alternative name: Chicago Radio Lab

Schematics

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 62310) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 316248) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 316249) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 316250) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 316251) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 316252) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 316253) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 316254) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 2728232) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

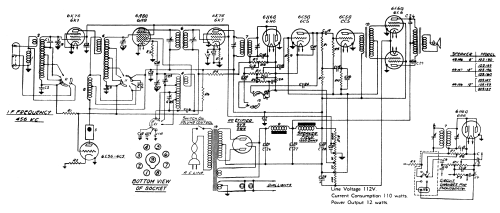

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 2728233) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 2728234) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 2728235) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (3)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 412889) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (2)
With courtesy by Ebayseller zenith_sparton

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 412890) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (2)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 412892) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (2)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 412891) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (2)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 412893) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (2)

10S157 Zephyr 10-S-157 Ch=1004; Zenith Radio Corp.; (ID = 706065) Radio — Zenith Radio Corp.; 10S157 Zephyr 10-S-157 Ch=1004 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
10

Valves / Tubes
6K7 6A8 6K7 6H6 6C5 6C5 6C5 6L6 6L6 5W4

Main principle
Superhet with RF-stage; ZF/IF 456 kHz

Wave bands
Broadcast, Short Wave(s) and Police.

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

Material
Wooden case

from Radiomuseum.org
Model: 10S157 Zephyr 10-S-157 Ch=1004 - Zenith Radio Corp.; Chicago,

Shape
Console with any shape - in general

Dimensions (WHD)
24 x 40.3 x 13.1 inch / 610 x 1024 x 333 mm

Notes
The Radio CollectorGrinder, 1995

External source of data
Ernst Erb

Source of data
Pre-War Consoles

Circuit diagram reference
Rider's Perpetual, Volume 8 = 1937 and before

Mentioned in
Collector's Guide to Antique Radios 4. Edition

Literature/Schematics (1)
Zenith Radio The Glory Years 1936-1945
