• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67286

• • alternative name: Chicago Radio Lab

• Number of Tubes
• 10

• Valves / Tubes
• 1232 6A8G 6K7G 6J5G 6F5G 6J5G 6V6G 6V6G 6X5G 6X5G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org

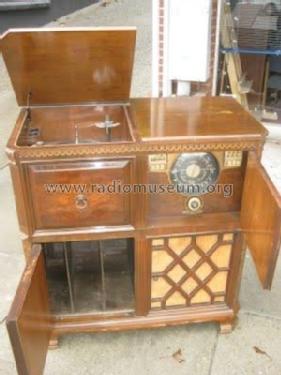

• Model: 10S590 10-S-590 Ch=10A2 - Zenith Radio Corp.; Chicago,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 35.5 x 37 x 17.3 inch / 902 x 940 x 439 mm

• Notes

• Radio use record player model 169-42

• Price in first year of sale
• 200.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Zenith Radio The Glory Years 1936-1945

• Literature/Schematics (1)
• Pre-War Consoles
