12H090 (not 12HO90 !) Ch= 11C21 late (6SB7Y)

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1946 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
135978

- alternative name: Chicago Radio Lab

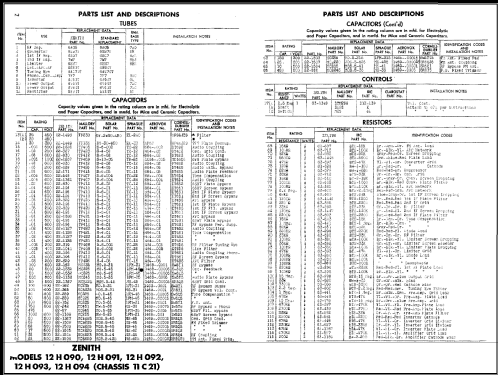

Schematics

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492104) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492105) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492106) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492107) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492108) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492109) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492133) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492135) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492136) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 492137) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 945713) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (3)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 515083) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (2)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 515086) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (2)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 515087) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (2)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 515084) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (2)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 515085) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (2)

12H090 Ch= 11C21; Zenith Radio Corp.; (ID = 1246932) Radio — Zenith Radio Corp.; 12H090 Ch= 11C21 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
11

Valves / Tubes
6AG5 6SB7Y 6SG7GT 7W7 6AL7GT 6SH7 6S8GT 6J5GT 6V6GT 6V6GT 5Y3GT

Main principle
Superhet with RF-stage; ZF/IF 455/8300 kHz

Wave bands
Broadcast, Short Wave plus FM or UHF.

Details
Changer (Record changer)

Power type and voltage
Alternating Current supply (AC) / 117 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Material
Wooden case

from Radiomuseum.org
Model: 12H090 Ch= 11C21 [late ] - Zenith Radio Corp.; Chicago,

Shape
Console with Push Buttons.

Notes
The price in the Radio Retailing March 1946 is $288.-- - for the early model "Zenith 1946" with the converter 6SB7. The model "late" has a converter 6SB7Y and maybe other technical change - see Rider's schematic page 15-91 & 92 with suffix "late").
Operating Frequencies:
BC 540 to 1600kc
SW 9 to 12 mc
FM1 42 to 49 mc
FM2 88 to 108 mc.

Record Changer: Zenith Model S-11680.
The model was introduced in "Radio & Television Retailing", August 1947, page 45 as Zenith 12HO90 (letter O) instead of 12H090 (number 0).

Circuit diagram reference
Rider's Perpetual, Volume 15 = 1947 and before

Mentioned in
Radio Retailing (Radio & Television R.) (August 1947 page 45.)

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 2, Folder 462-20)

Author
Model page created by Egon Penker. See "Data change" for further contributors.
