• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67351

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 26 26 26 27 26 UX171 80

• Main principle
• TRF without regeneration

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

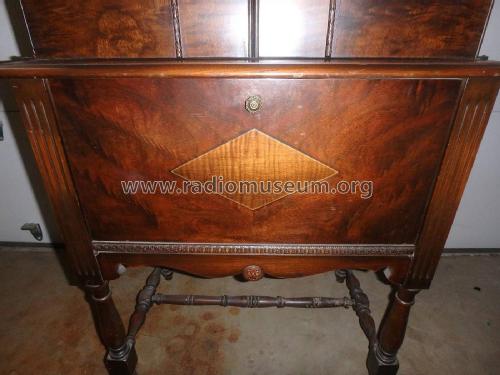

• Model: 14E - Zenith Radio Corp.; Chicago,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• One dial (primary tuning control knob).

• Price in first year of sale
• 255.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Other Models

• Here you find 4496 models, 4101 with images and 3615 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Zenith Radio Corp.; Chicago, IL
