14H789 Ch= 13D22
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67355
-
- alternative name: Chicago Radio Lab
Copy from Ebay seller sierraanimals

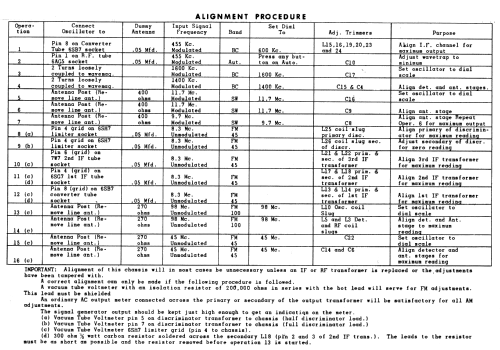

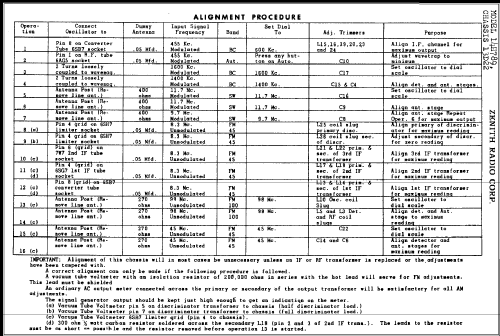

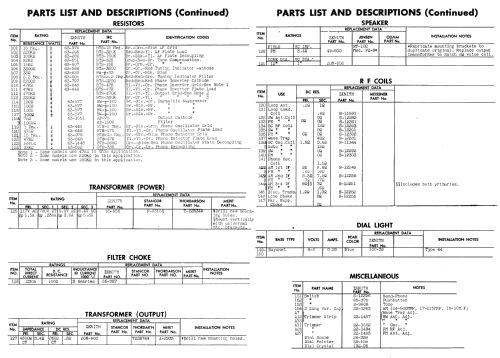

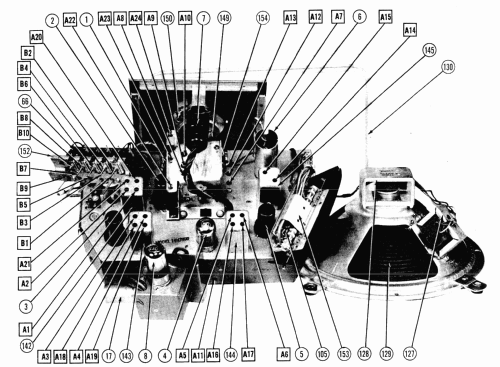

SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 20 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

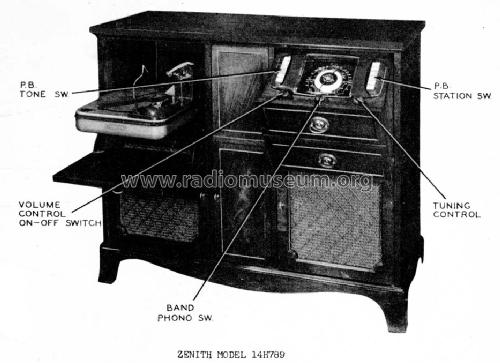

- Model: 14H789 Ch= 13D22 - Zenith Radio Corp.; Chicago,
- Shape
- Console with Push Buttons.
- Notes
- Operating Frequencies:
BC 540 to 1600 kc
SW 9 to 12 mc
FM1 42 to 49 mc
FM2 88 to 108 mc.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)

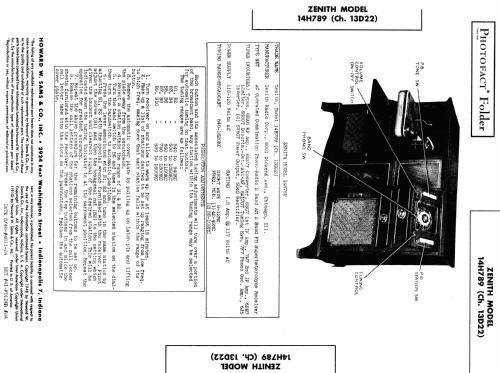

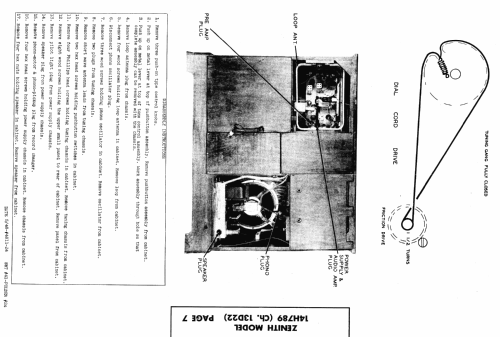

- Photofact Folder, Howard W. SAMS (5/48 4811-24 Set 41, Folder 24)
