• Country
• Spain

• Manufacturer / Brand
• Zenith, Telerasa; Barcelona

• Year
• 1964 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 220957

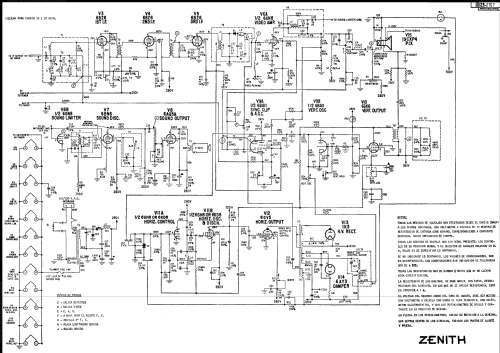

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6GK5 6EA8 6BZ6 6BZ6 6BZ6 6GN8 6BN6 6AQ5A 6BA11 6GK6 6GH8 6GV5 1K3 6AY3 19CXP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: Ch= 15L37 - Zenith, Telerasa; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 405 x 260 mm / 23.6 x 15.9 x 10.2 inch

• Notes

• Zenith (Telerasa) Ch= 15L37

  TV B/N 19" Selector rotativo de VHF

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 702, Folder 4, Date 7/1964)

• Literature/Schematics (1)
• -- Schematic (Esquemario TV REDE, Tomo II, 1964)

• Author
• Model page created by Ildefonso Angel López. See "Data change" for further contributors.
