211-5 Ch= 2046
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67392
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 125 kHz; Export model
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 115; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 211-5 Ch= 2046 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-

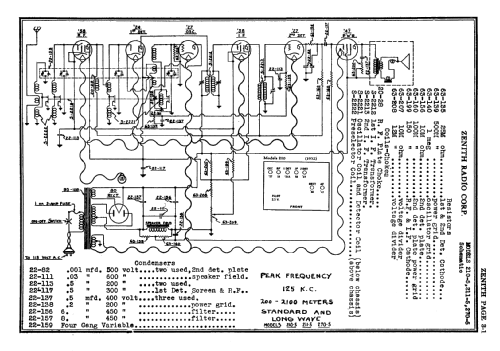

See the date of the schematic from Conrad Walser, Switzerland (late 1932).
The 115 or 240VAC export model had a 2-tap input power transformer.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Mentioned in
- Zenith Radio The Early Years 1919-1935
