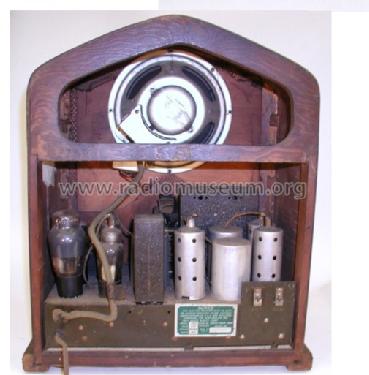

230 Ch= 2036
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1932
![perfect model](/img/sternRot.gif)
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 18997
-
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115-230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 230 Ch= 2036 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
This model was also imported into Switzerland by Conrad Walser in Zürich and sold as Zenith Zenette Mod. 230.
- Price in first year of sale
- 55.00 $
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Mentioned in
- Radio Collector`s Guide 1921-1932
- Literature/Schematics (1)
- Zenith Radio The Early Years 1919-1935
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 319.)
- Literature/Schematics (3)
- Cathedral & Tombstone Radios (page 283.)
