• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18998

• • alternative name: Chicago Radio Lab

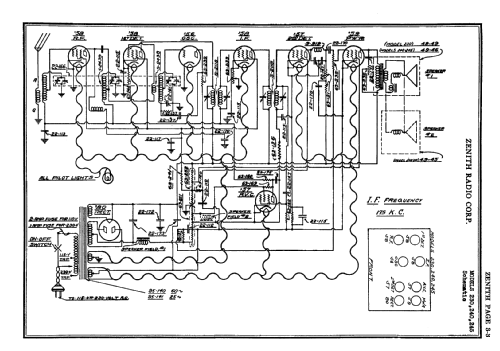

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 58 58 56 58 57 57 59 80

• Main principle
• Superheterodyne (common); ZF/IF 175 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115-230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

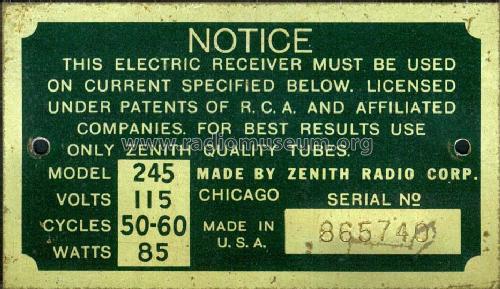

• Model: 245 Ch= 2036 - Zenith Radio Corp.; Chicago,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 29.25 x 41.25 x 16 inch / 743 x 1048 x 406 mm

• Notes
• 6 legged lowboy with stretcher base.
  Two speakers.

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Radio Collector`s Guide 1921-1932

• Literature/Schematics (1)
• Zenith Radio The Early Years 1919-1935

• Literature/Schematics (2)
• Pre-War Consoles
