• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67401

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 58 24 27 58 27 57 27 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 50-60 Hz, 115; 230 Volt

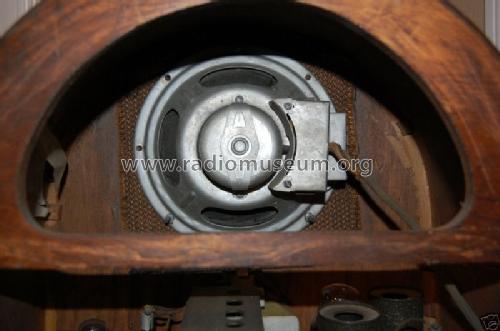

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 250 All Star Line Ch= 2031 - Zenith Radio Corp.; Chicago,

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Notes
• separate SW line;

• Price in first year of sale
• 73.00 $

• External source of data
• Ernst Erb

• Source of data
• Zenith Radio The Early Years 1919-1935

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Zenith Radio The Early Years 1919-1935

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 320.)

• Literature/Schematics (3)
• Cathedral & Tombstone Radios (page 284.)
