• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67074

• • alternative name: Chicago Radio Lab

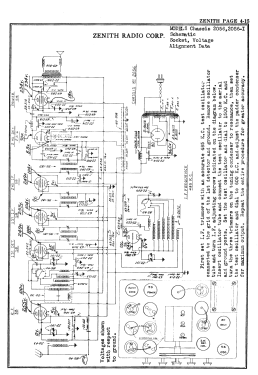

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 58 56 58 58 58 2A6 59 80

• Main principle
• Superhet with RF-stage; ZF/IF 485 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115-230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 293 Ch= 2056 - Zenith Radio Corp.; Chicago,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• 6-legged lowboy;

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Mentioned in
• Pre-War Consoles

• Literature/Schematics (1)
• Zenith Radio The Early Years 1919-1935
