• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19000

• • alternative name: Chicago Radio Lab

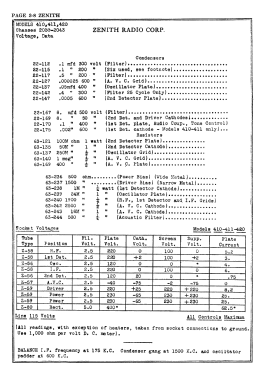

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 58 58 56 58 56 59 57 59 80 59

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115-230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 410 Ch= 2030 - Zenith Radio Corp.; Chicago,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• 2 speakers; shadowgraph tuning;

• Price in first year of sale
• 105.00 $

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Radio Collector`s Guide 1921-1932

• Literature/Schematics (1)
• Zenith Radio The Early Years 1919-1935
