• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1934

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 67455

• • alternative name: Chicago Radio Lab

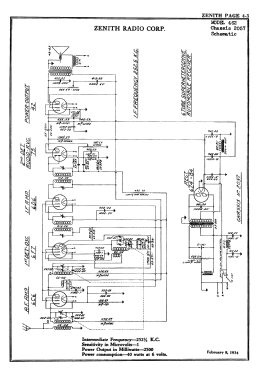

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6C6 6F7 6D6 75 42 6Z4

• Main principle
• Superhet with RF-stage; ZF/IF 252 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 462 Ch= 2057 - Zenith Radio Corp.; Chicago,

• Shape
• Chassis only or for «building in»

• Notes
• 2 piece: Chassis & Control Head

• External source of data
• Ernst Erb

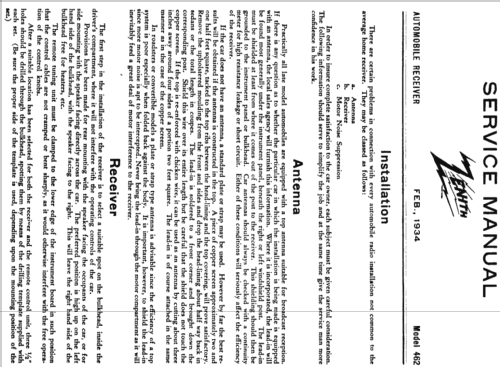

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before
