4F133 Ch= 5407
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67478
-
- alternative name: Chicago Radio Lab
Copy gen. von John Goller Radio Attic

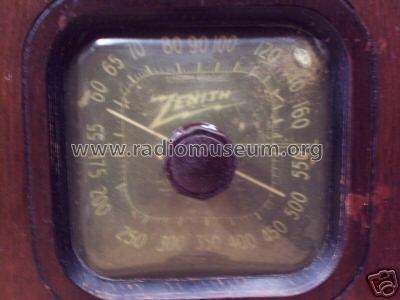

With courtesy by Ebayseller 1_tmoen5grj
With courtesy by Ebayseller 1_tmoen5grj back
Zenith Sales Brochure 1937
Picture from Zenith Sales Brochure 1937
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4F133 Ch= 5407 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 11 x 15.1 x 6.7 inch / 279 x 384 x 170 mm
- Notes
- With Vibrator Supply Unit.
Farm or RV/Trailer Radio.
- Price in first year of sale
- 24.95 USD
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Zenith Radio The Glory Years 1936-1945
