• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 67482

• • alternative name: Chicago Radio Lab

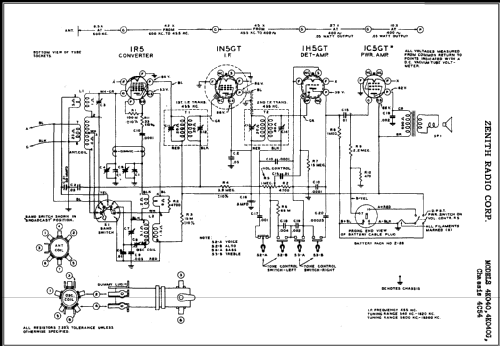

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1N5GT 1H5GT 1C5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• from Radiomuseum.org
• Model: 4K040G Ch= 4C54 - Zenith Radio Corp.; Chicago,

• Shape
• Portable set > 8 inch (also usable without mains)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Mentioned in
• Beitman Radio Diagrams, Vol. 08, 1948
