4T26 Ch= 5401
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 67514
-
- alternative name: Chicago Radio Lab
Copy gen. von Greg Martin Radio Attic

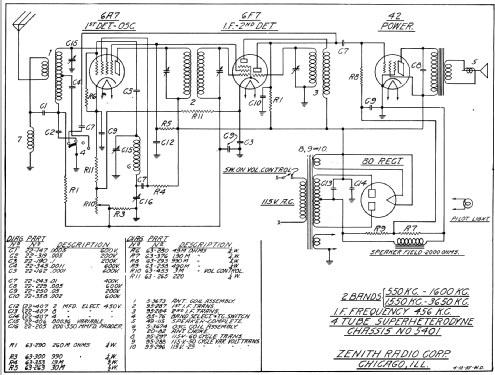

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4T26 Ch= 5401 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 12 x 14 x 7 inch / 305 x 356 x 178 mm
- Notes
-
Model 4-T-26 chassis 5401
Similar to models 4-T-26 chassis 5403 early , late and model 4-P-26 chassis 5401, and model 4-P-26-E Ch. 5401E
Differences you will find near the chassisversions, in the dial sourrounding, the colour of the dialplate and the wavebands.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Mentioned in
- Zenith Radio The Early Years 1919-1935
